Configure your Arc.
Start with the range you are after — a single module, two modules joined by a breezeway, a larger kit dwelling at 5.0 or 6.0 m, a studio cabin, or a sauna pavilion. Then set the widths and lengths below to build your layout, and pick a finish and exterior colour. Pricing updates live below as you go, shown across all three Arc supply pathways — Kit Supply, Lock-up Supply and Modular (completed) — so you can compare before you decide. The bays you pick set the structure — the internal layout is then customised to suit you during design, and most clients change something.
Module A — bedroom wing
The sleeping wing. Bedrooms and the family bath off a hallway that runs along the breezeway edge.

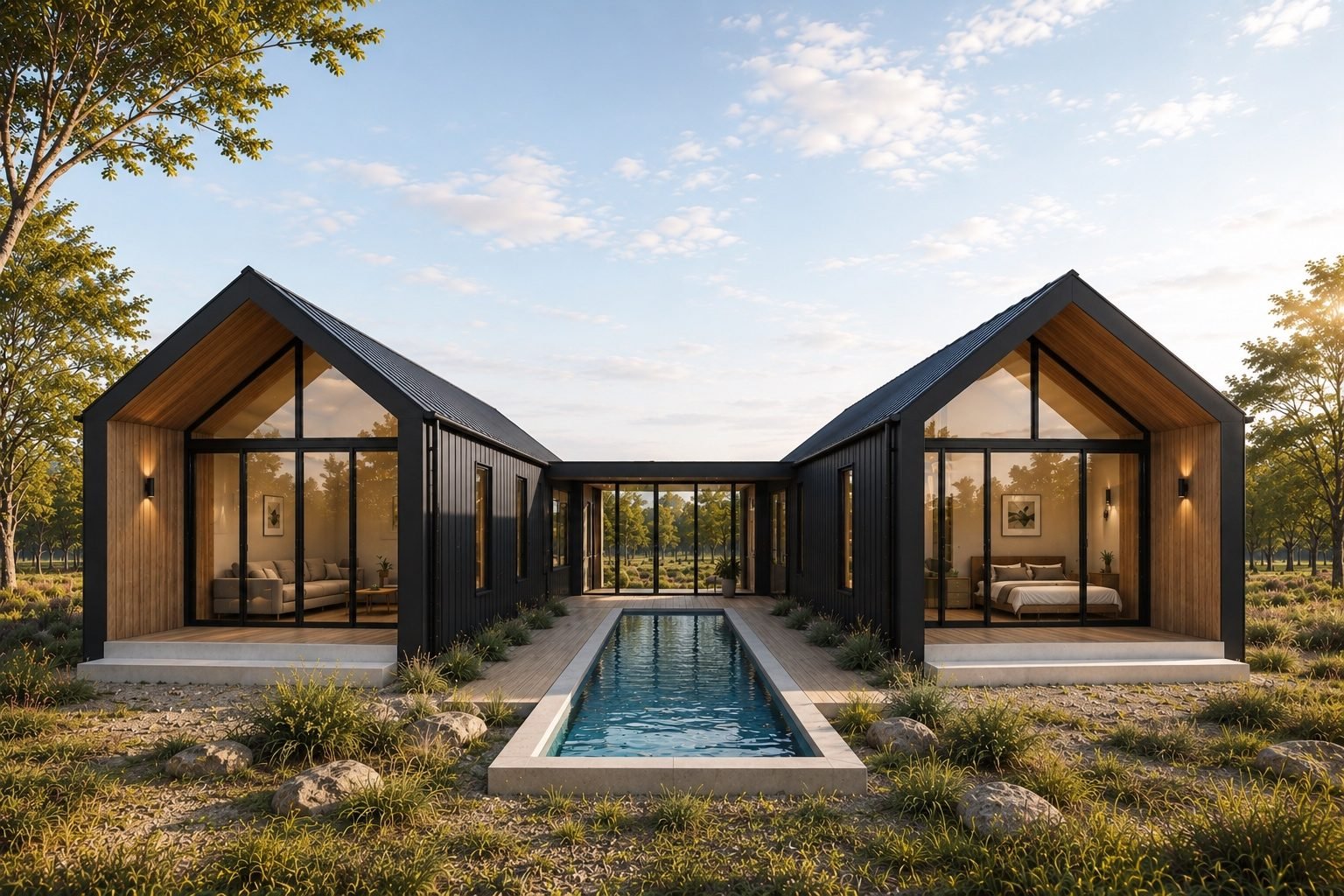

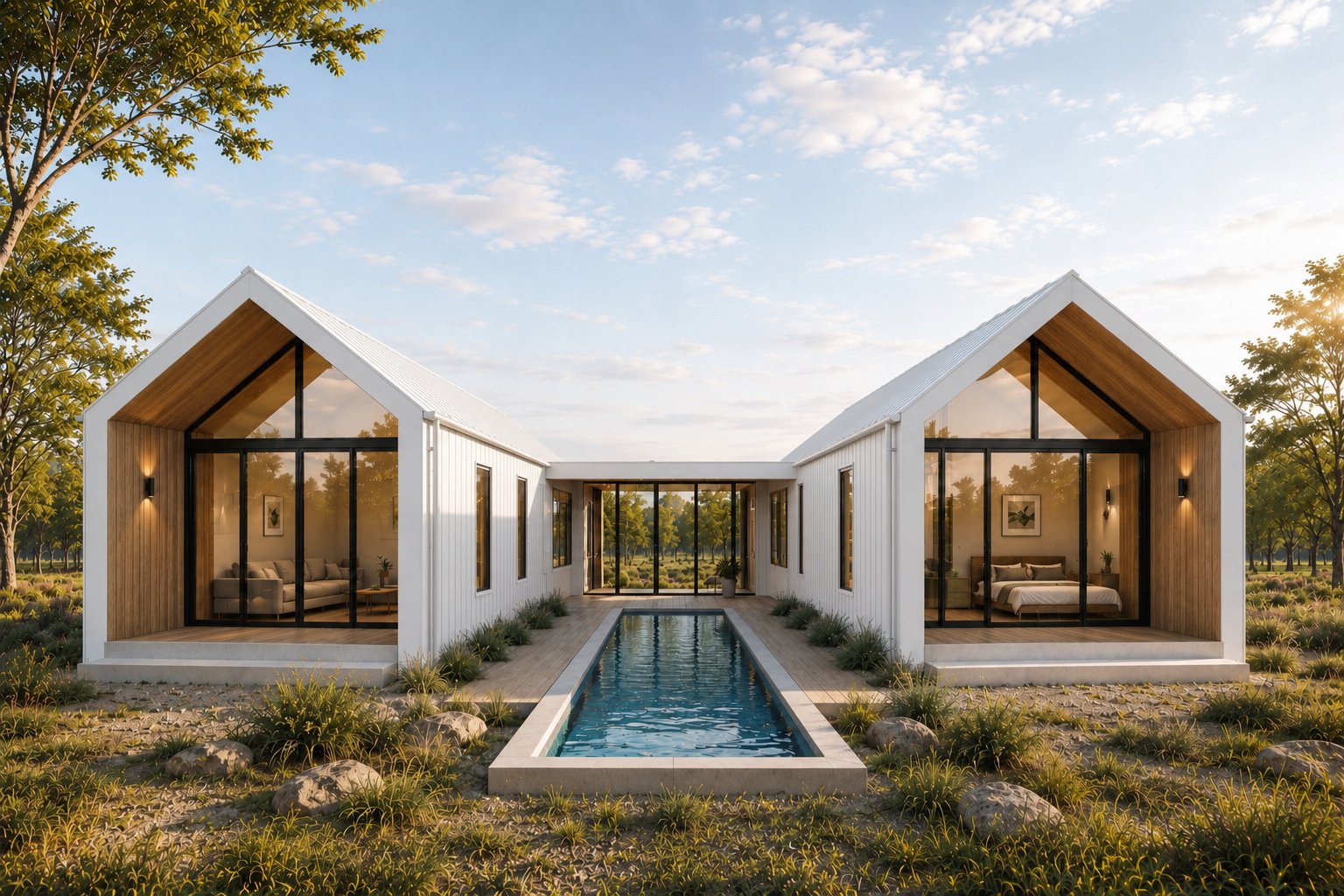

Module B — living wing

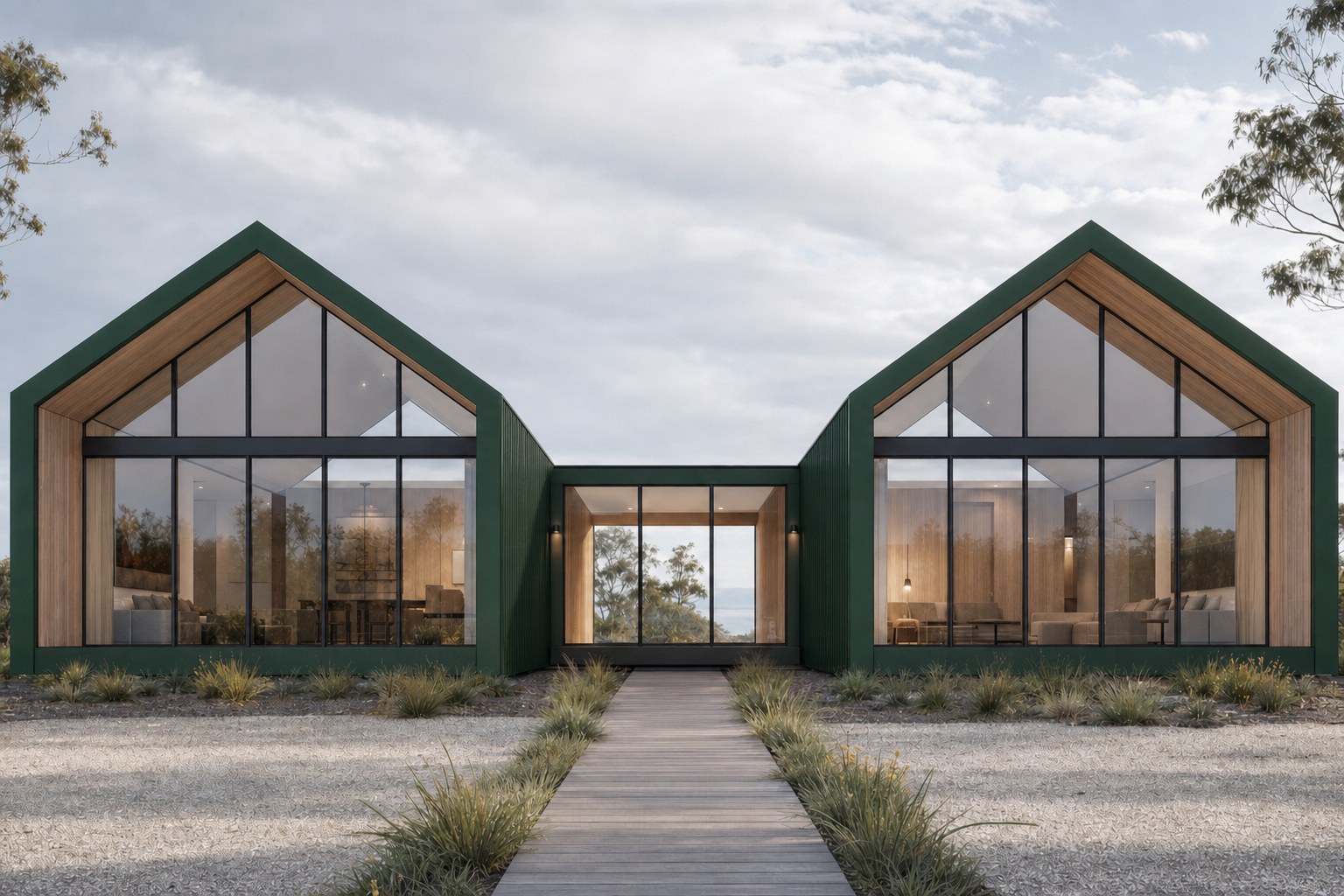

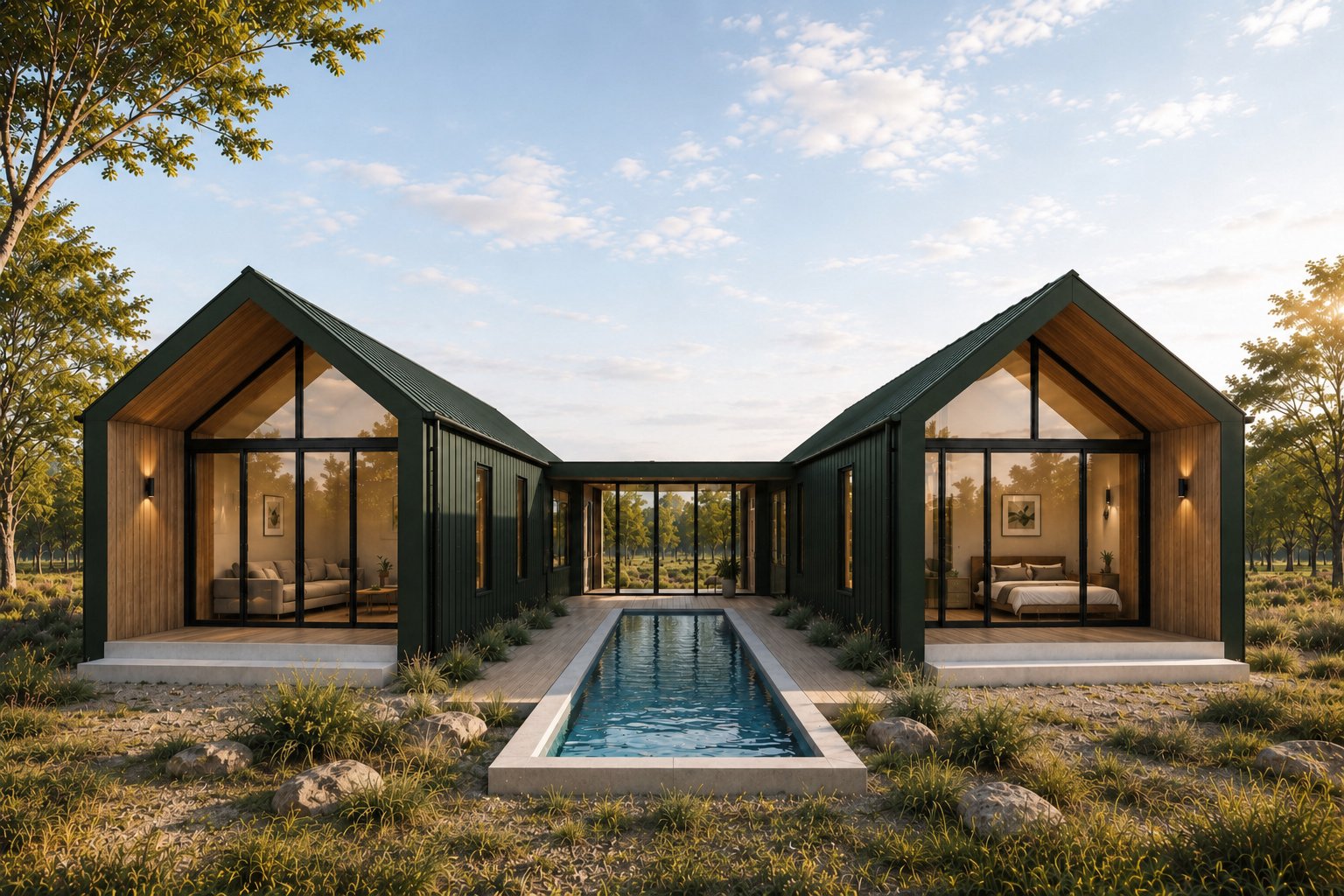

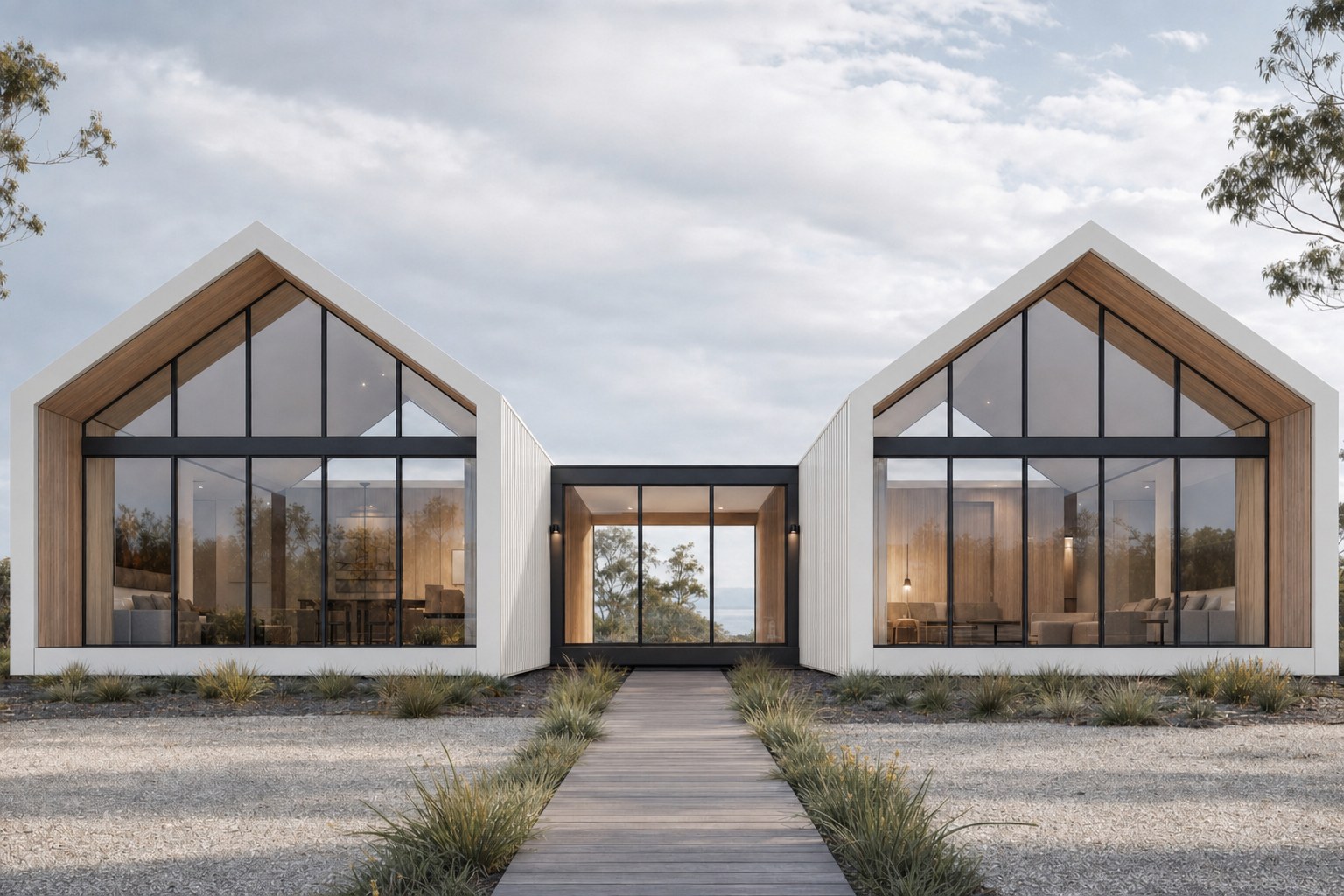

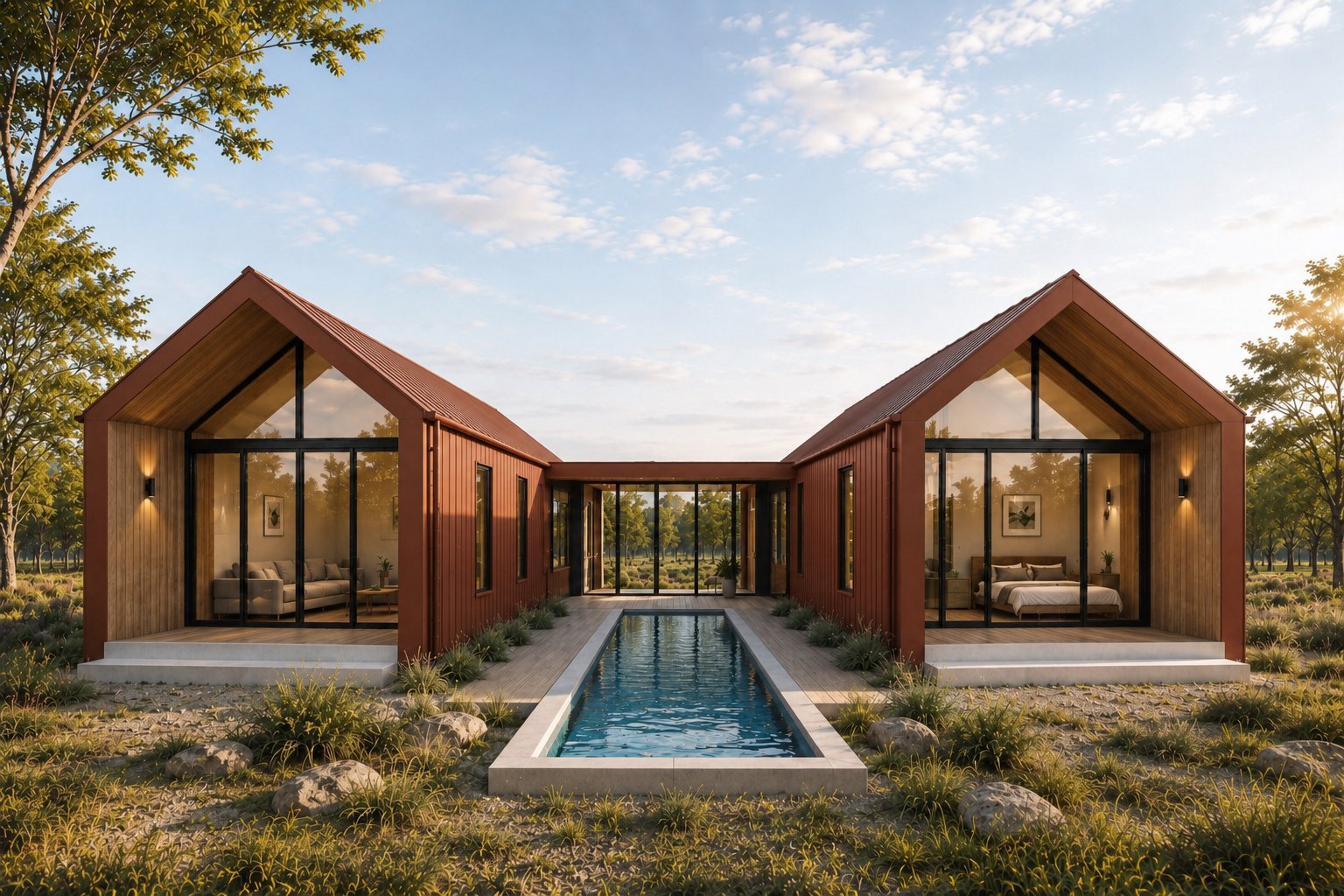

A pair is one services spine split across two modules: the bedroom wing carries the bath and laundry, the living wing carries the kitchen. Joined by a breezeway between the long sides — never a shared wall, never a right angle, never end to end. Each wing can be delivered differently, too — one arrives finished, the other as a kit you build on site, if that suits your project.

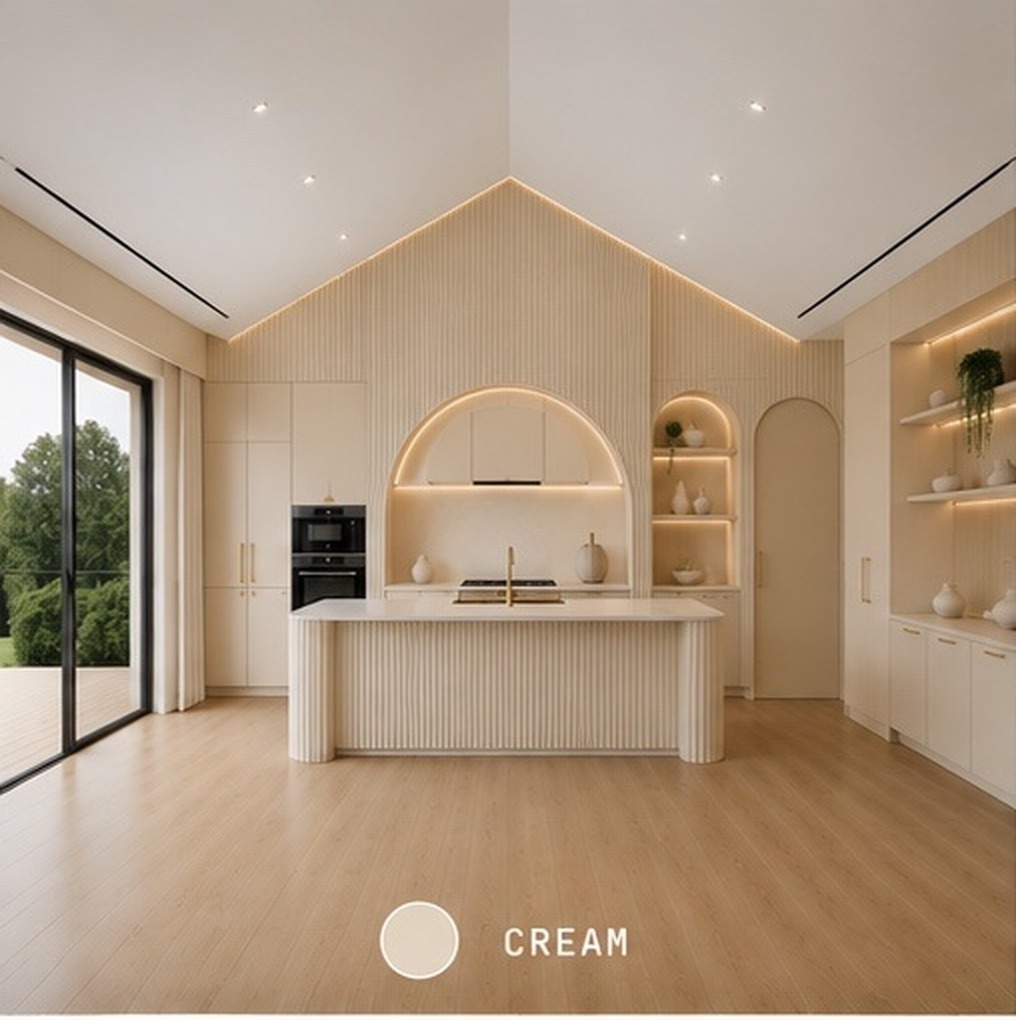

Standard Elements sample room — finish reference only.

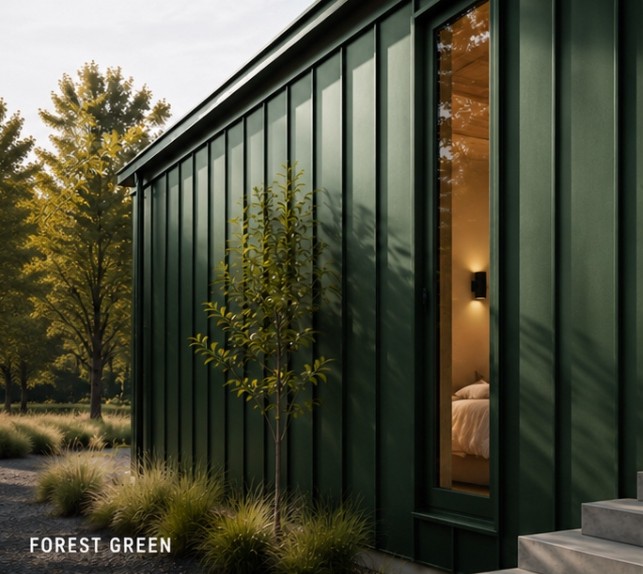

Standard cladding sample — colour reference only.
Module width
Above 4.5 m wide, the road decides for you
A finished module is a road load, and width is what governs it. In NSW a load over 3.5 m wide needs a pilot vehicle and over 4.6 m needs two, under the Transport for NSW oversize access conditions; past 6.0 m it becomes a full traffic management plan.

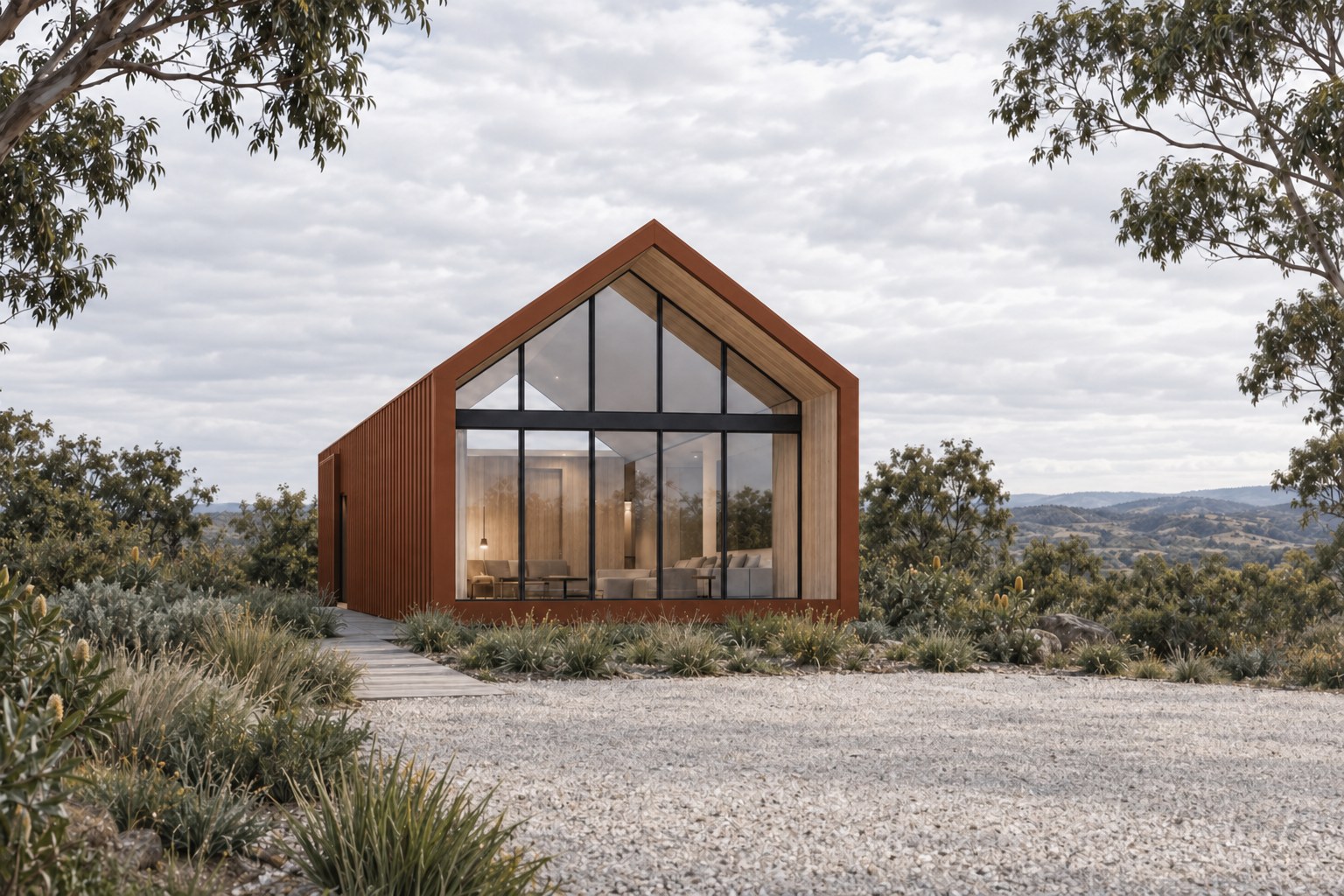

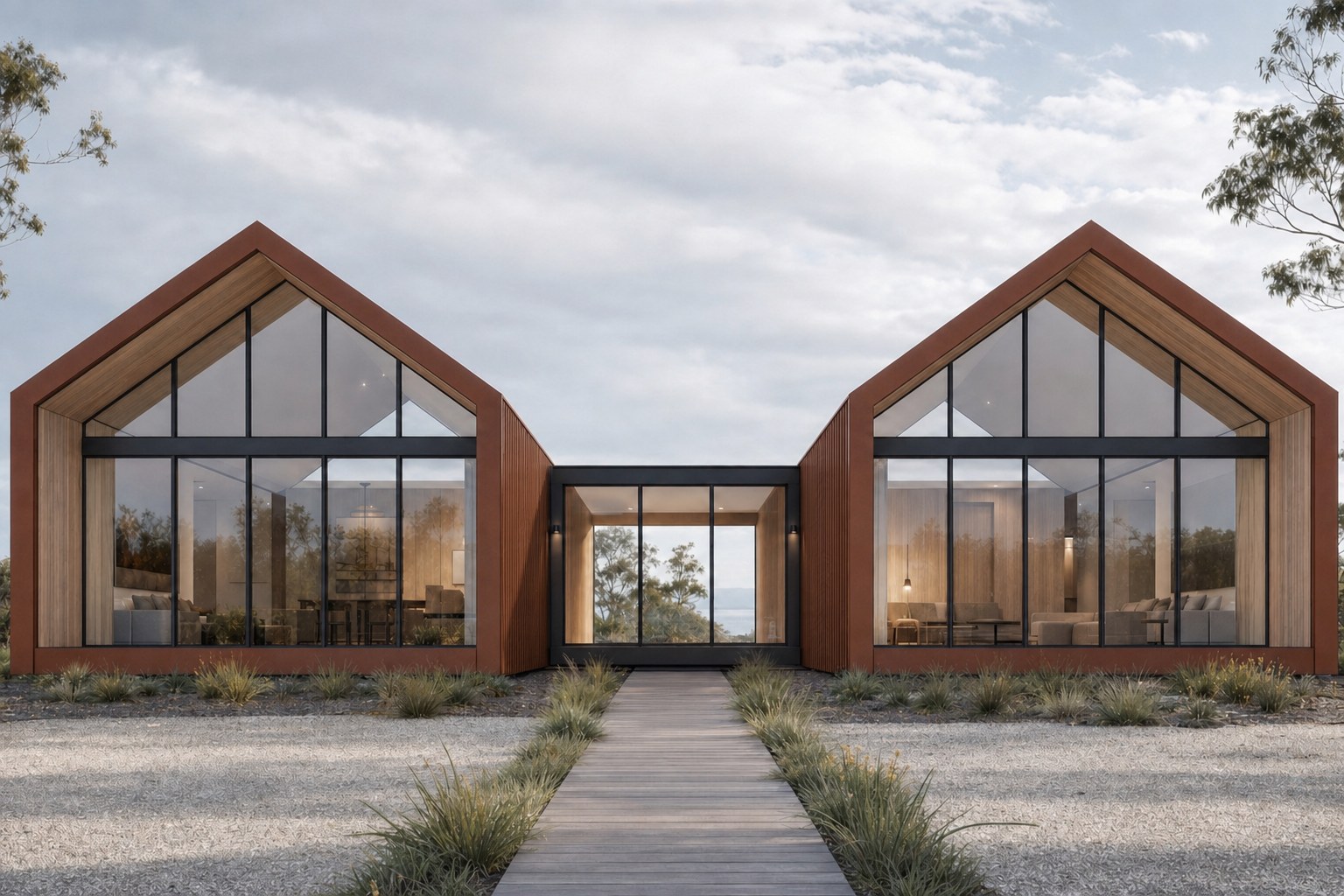

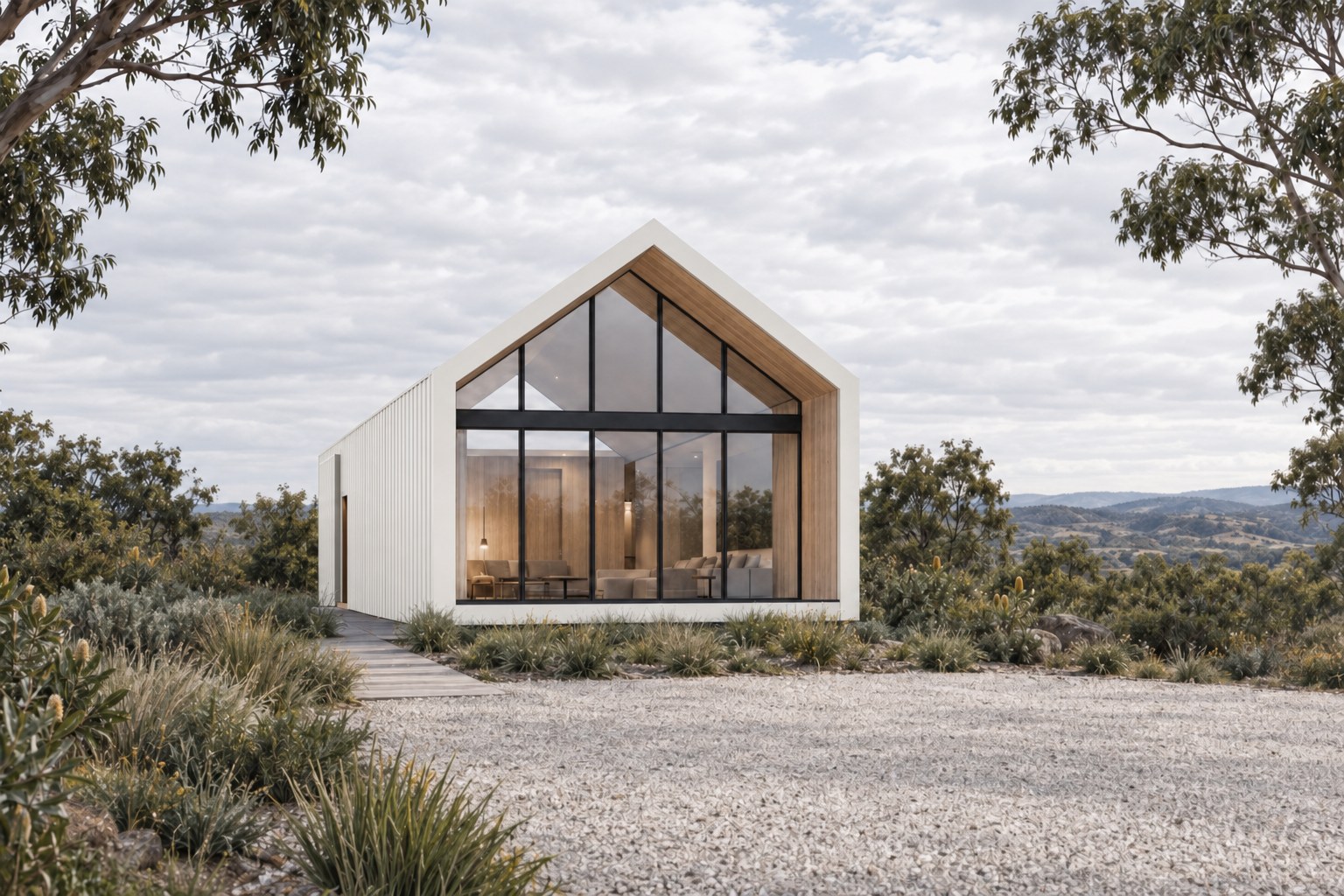

So 4.5 m is the widest building we can hand over complete. At 5.0 m and 6.0 m the same engineered building is supplied as a kit on 300 PFC portals and assembled on your site. It isn't a lesser option — it's the only honest one at that width.
Can we change the internal layout?
Yes — almost entirely. The structure carries on the perimeter and on portal frames at 4.0 m centres, so no wall inside the building is load bearing. Move a bedroom wall, open the living end up, relocate a doorway: none of it touches the engineering.
What's fixed is the perimeter and the wet-area positions, because those are what let us engineer and price the building repeatably. Inside that boundary the layout is yours, and at 5.0 m and 6.0 m we draw it with you from scratch rather than ask you to pick a plan off a list.
Module length

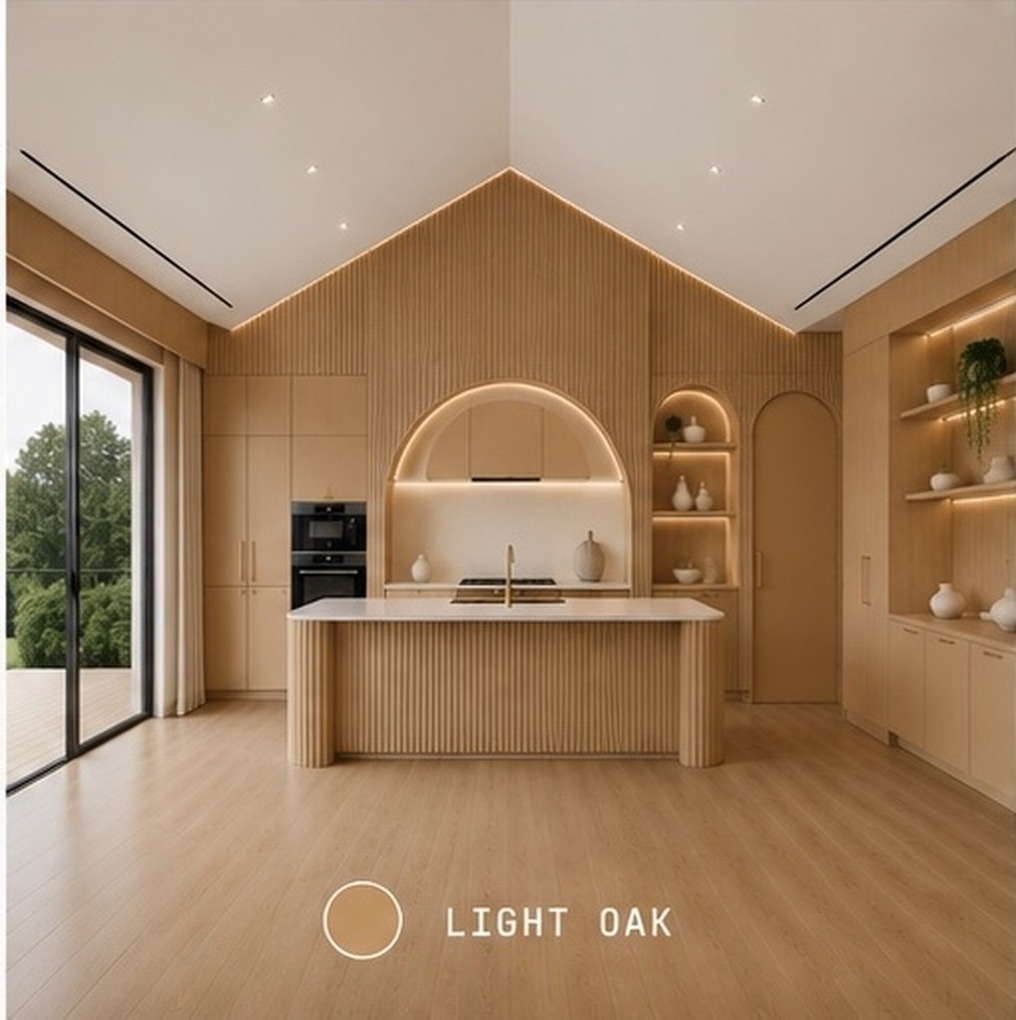

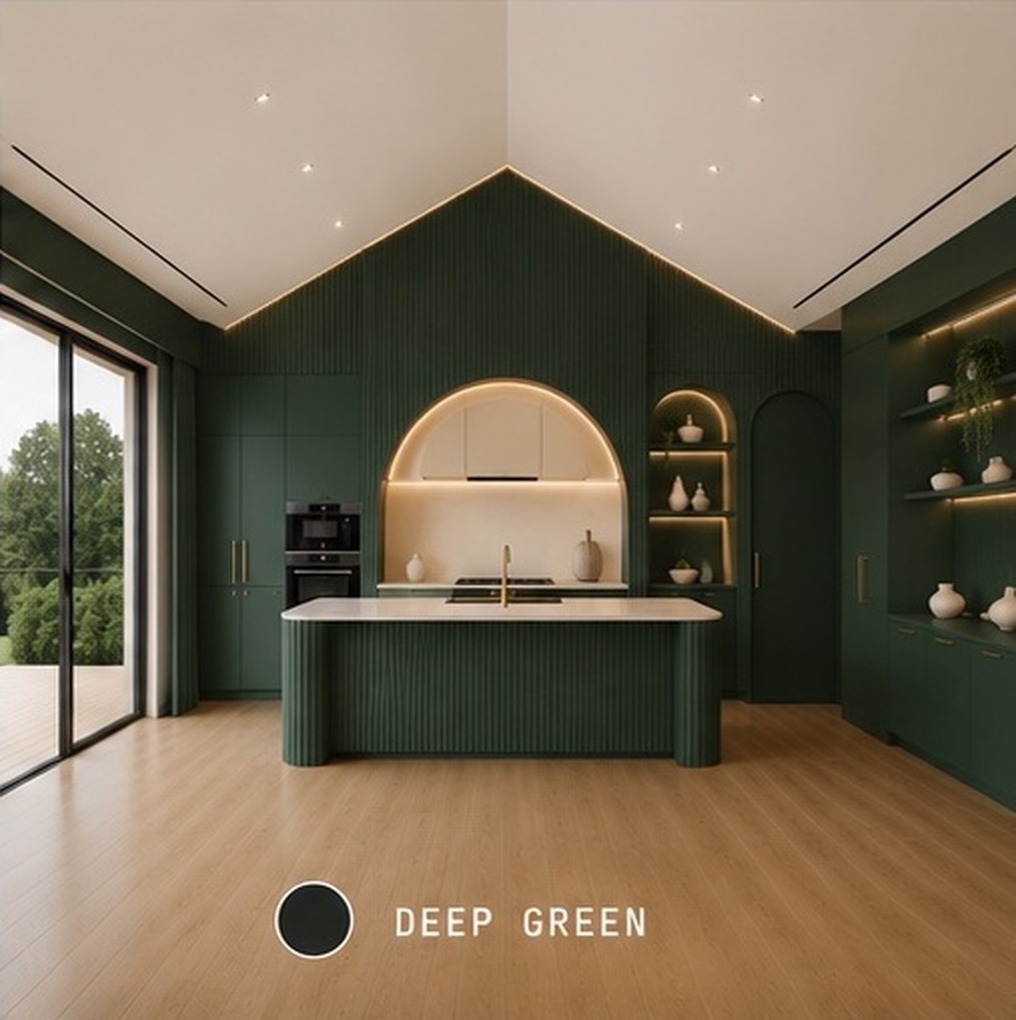

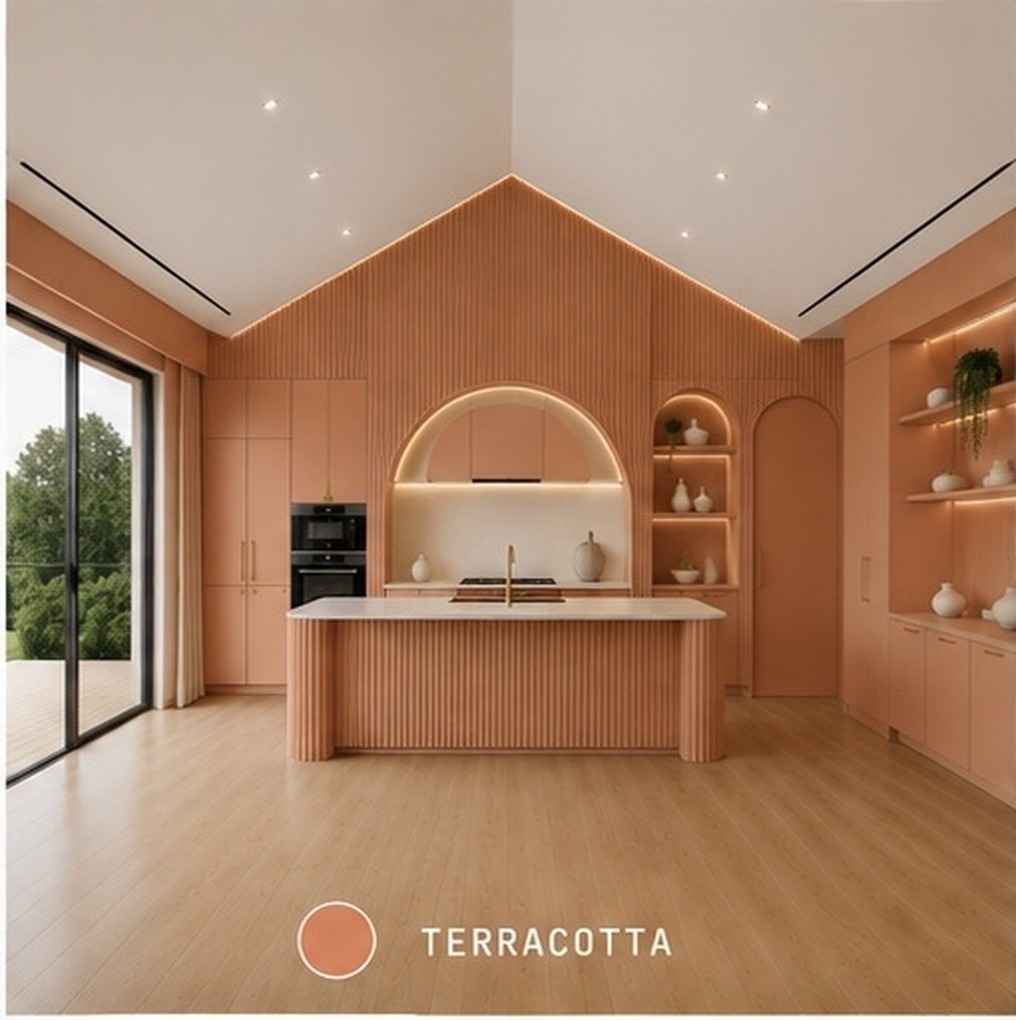

Finish — Elements palette
Cosmetic selection only — the drawing stays monochrome. Colour and finish apply to Elements joinery, not the structural drawing.

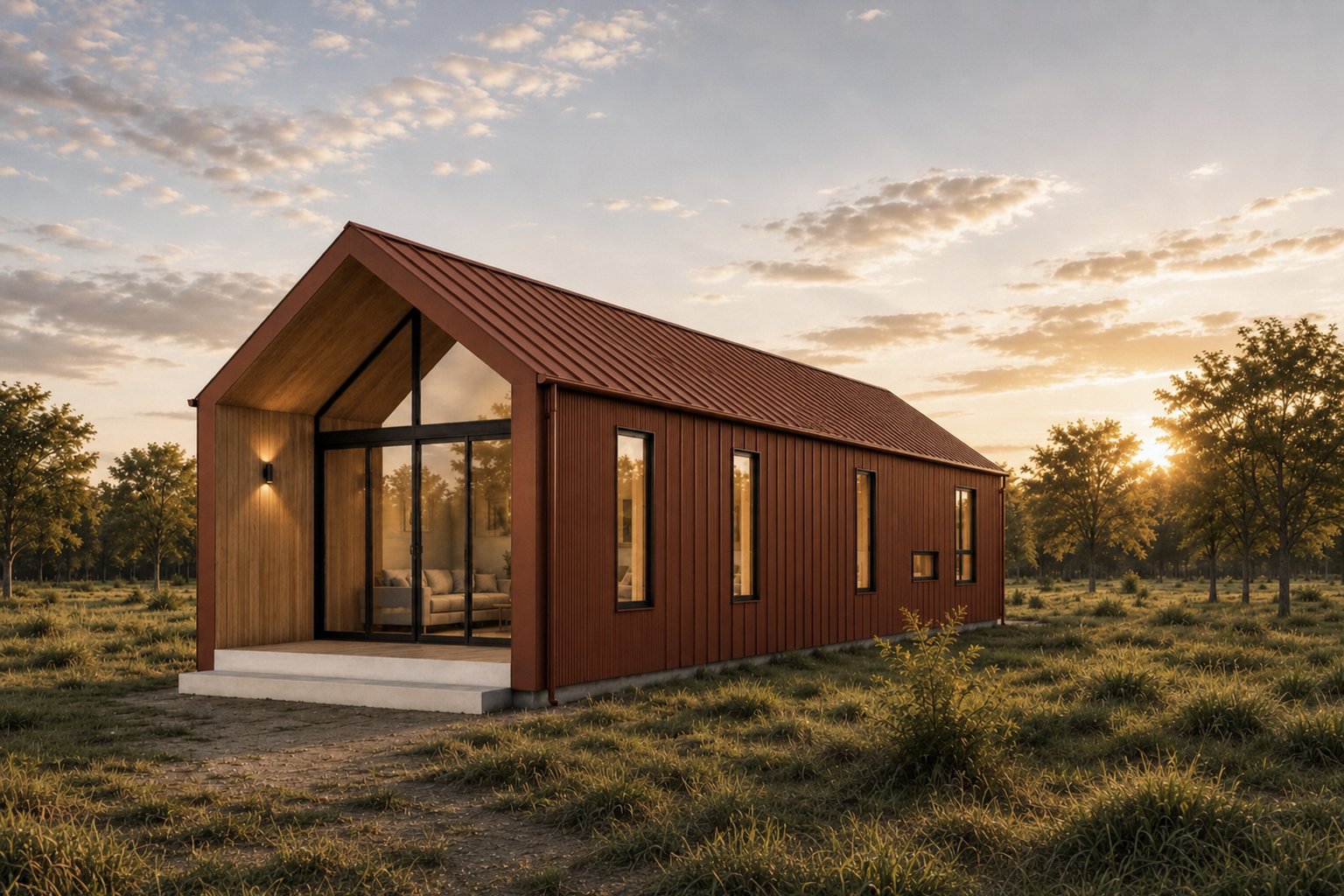

Exterior colour — Cladding
Cosmetic selection only — the drawing stays monochrome. Colour applies to external cladding, not the structural drawing.

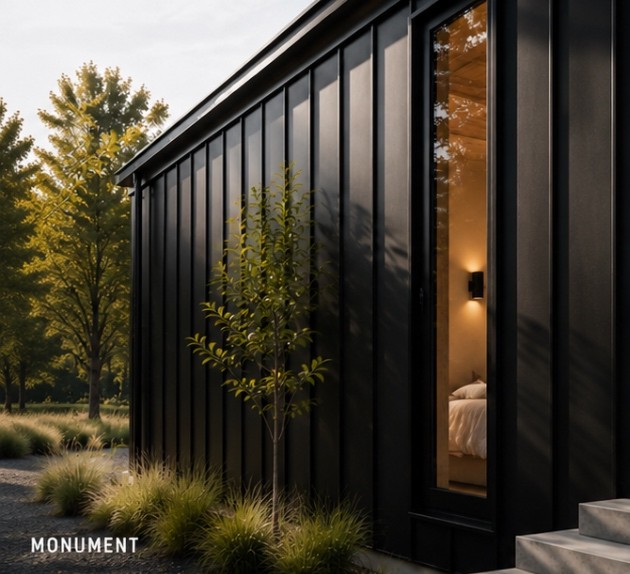

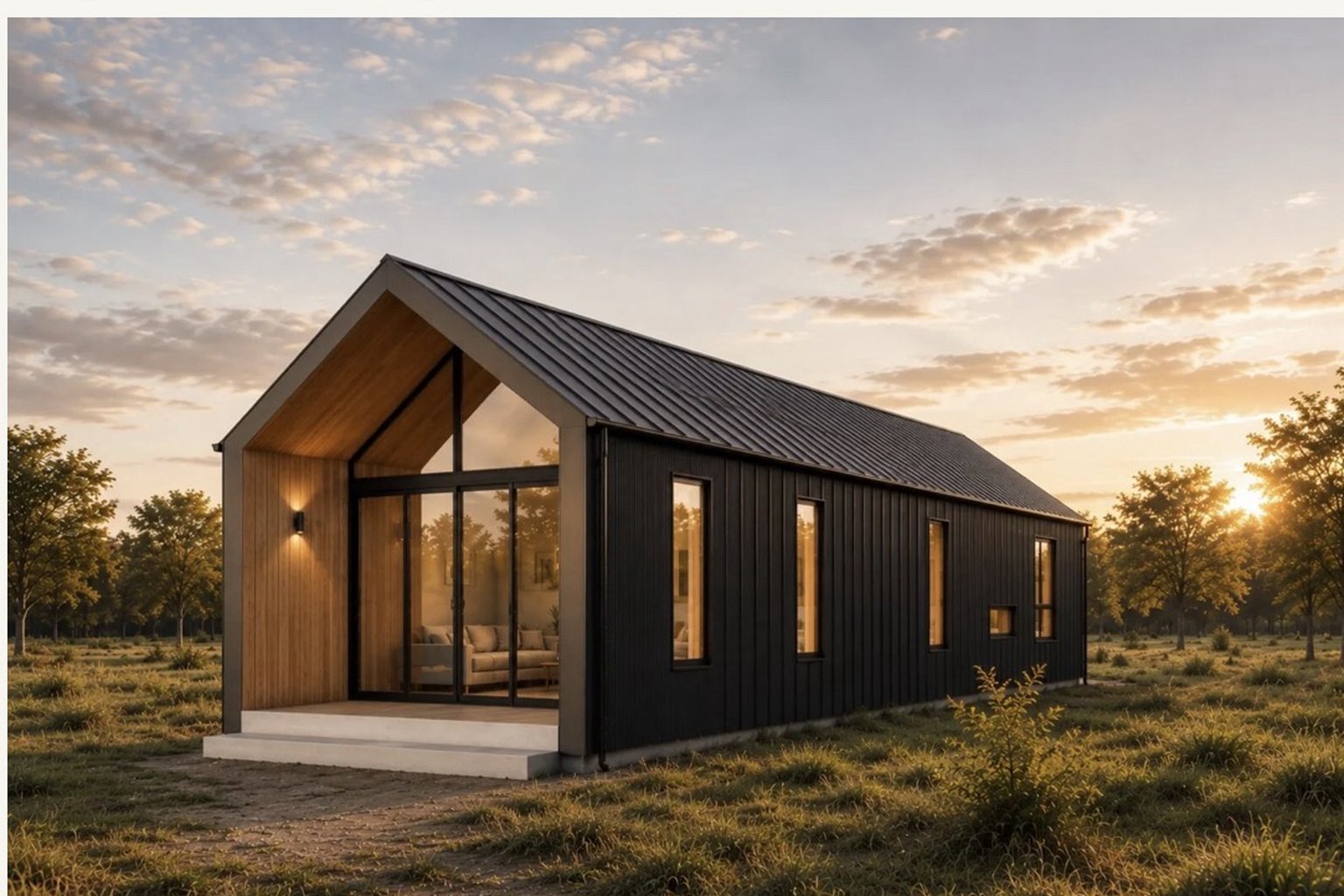

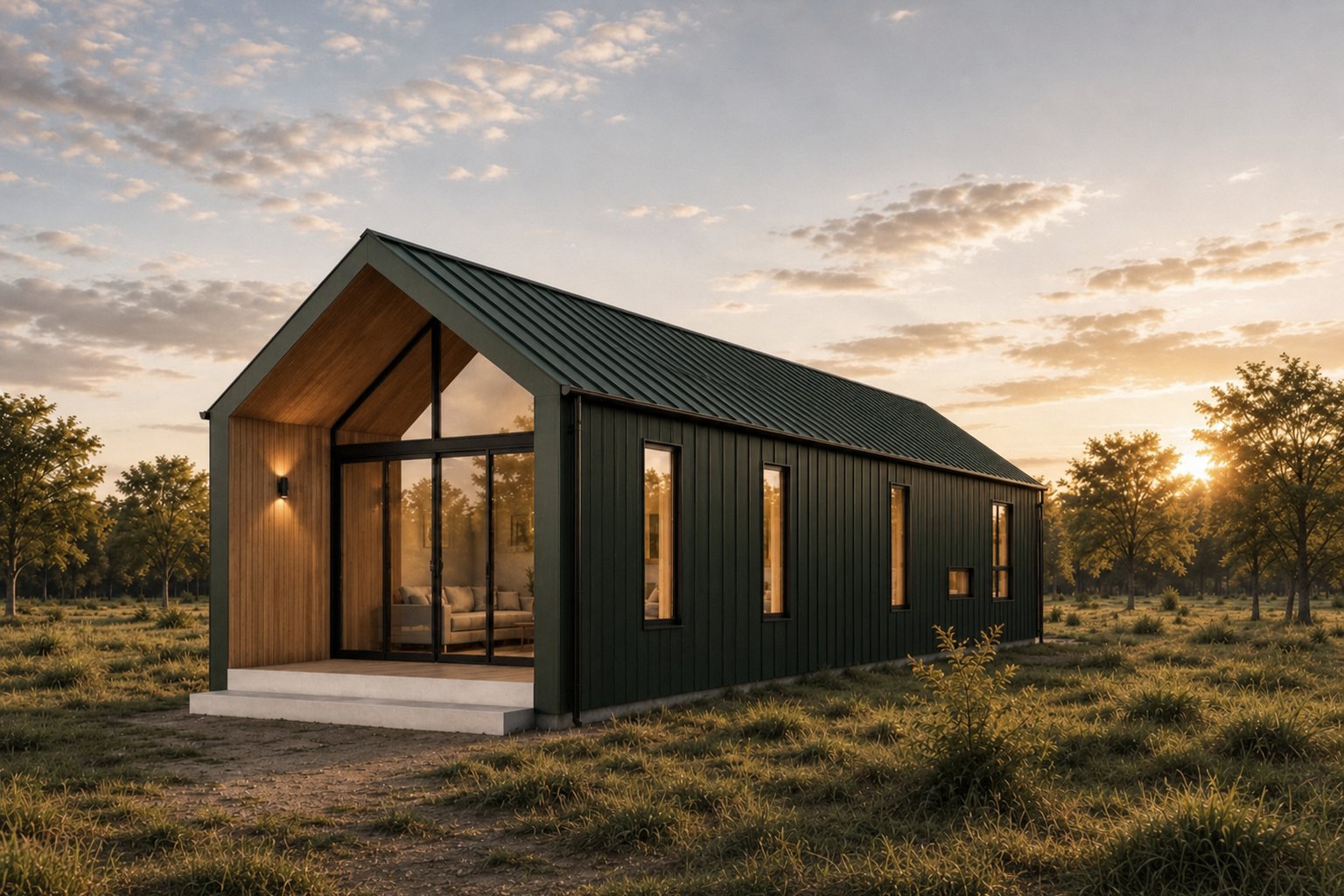

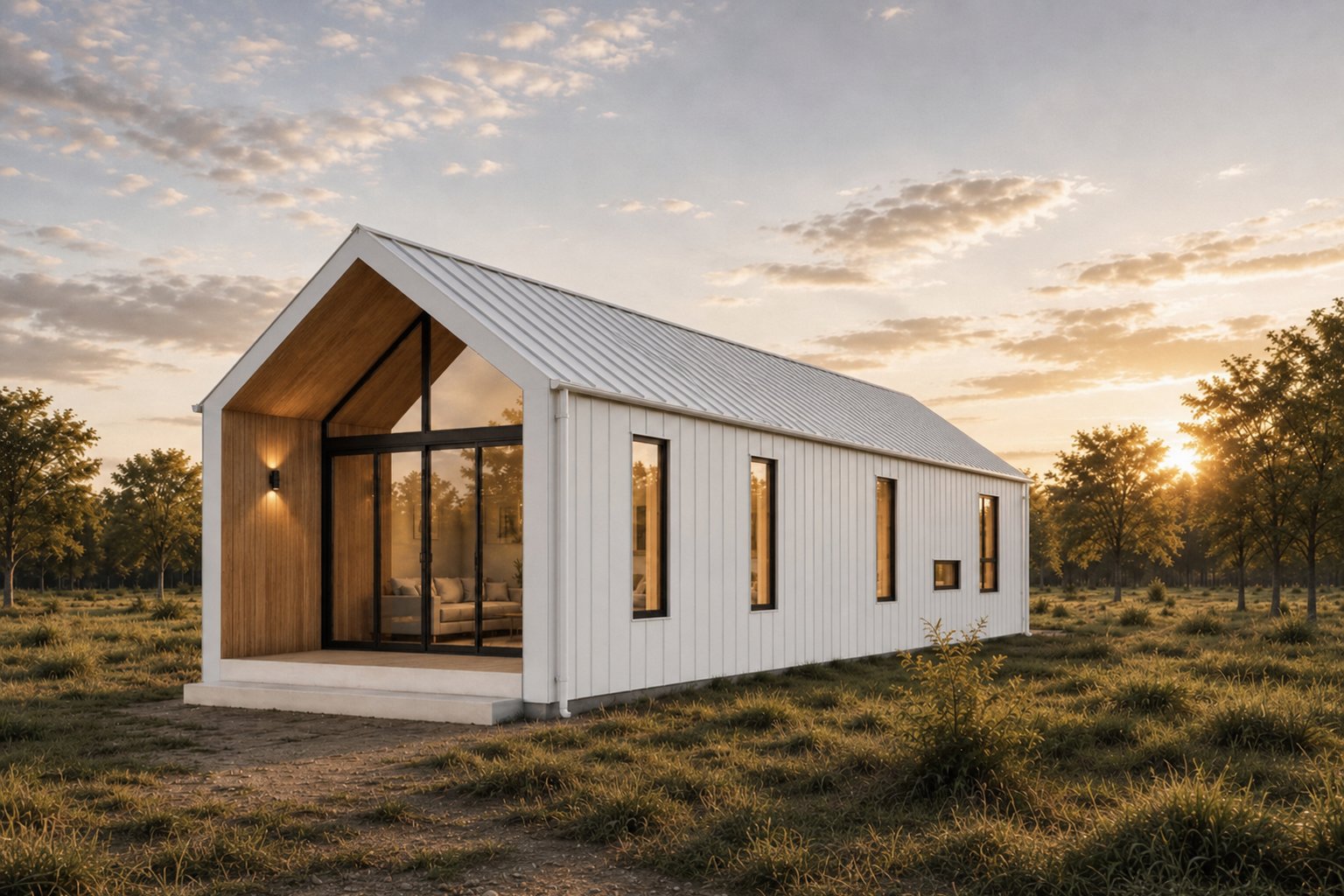

Finished view — single module · Monument
Indicative render, matched to your layout and cladding colour — not redrawn to your exact width and length.
Full configuration spec
Or book a visit to our display home at Bonogin.
This shows how the system could combine, with an indicative internal layout — expect yours to be customised. Overall dimensions and floor areas are not labelled on the drawing because they are not yet confirmed for any combined layout. The “starting from” prices above are separate, indicative estimates only — not a quote.
Your studio cabin — 8 m Side Lounge
—
Exterior colour
Renders of the concept design. Furniture, styling and landscaping are indicative.
Delivered complete
Fixed price —, GST excluded.
Specification
Your pavilion — Sauna
—
Render of the issued design. Cold plunge and landscaping shown are not included.
Specification
Both pavilions are one fixed design, so there is nothing to size. Pick the single sauna or the pair, and the price is the price.
Send this through as an enquiryIncluded. Not included.
Included
Not included
—
Nothing has been sent yet.
Your configuration is saved. Where next?
Stage 3 of 6 is done. Everything you've set here carries forward automatically — you won't re-enter any of it.
—
Send this to Arc
Add your contact details and your building comes through with it. We'll personally get back to you within one business day.
Send this to Arc Optional, before you sendChoose your interior selections
Your kitchen is already specified. Choose your internal doors and your floors, see an indicative figure, and it carries into your enquiry. You can skip it.
Choose doors and floorsNot ready to enquire yet?
Download your design.
Add Arc Elements later
Arc Elements is Arc's integrated internal wall, door and joinery system. It can be designed and specified after your final building layout and interior requirements are confirmed.
Discuss Arc ElementsNothing has been sent yet. The prices shown are indicative estimates, not a quote.
